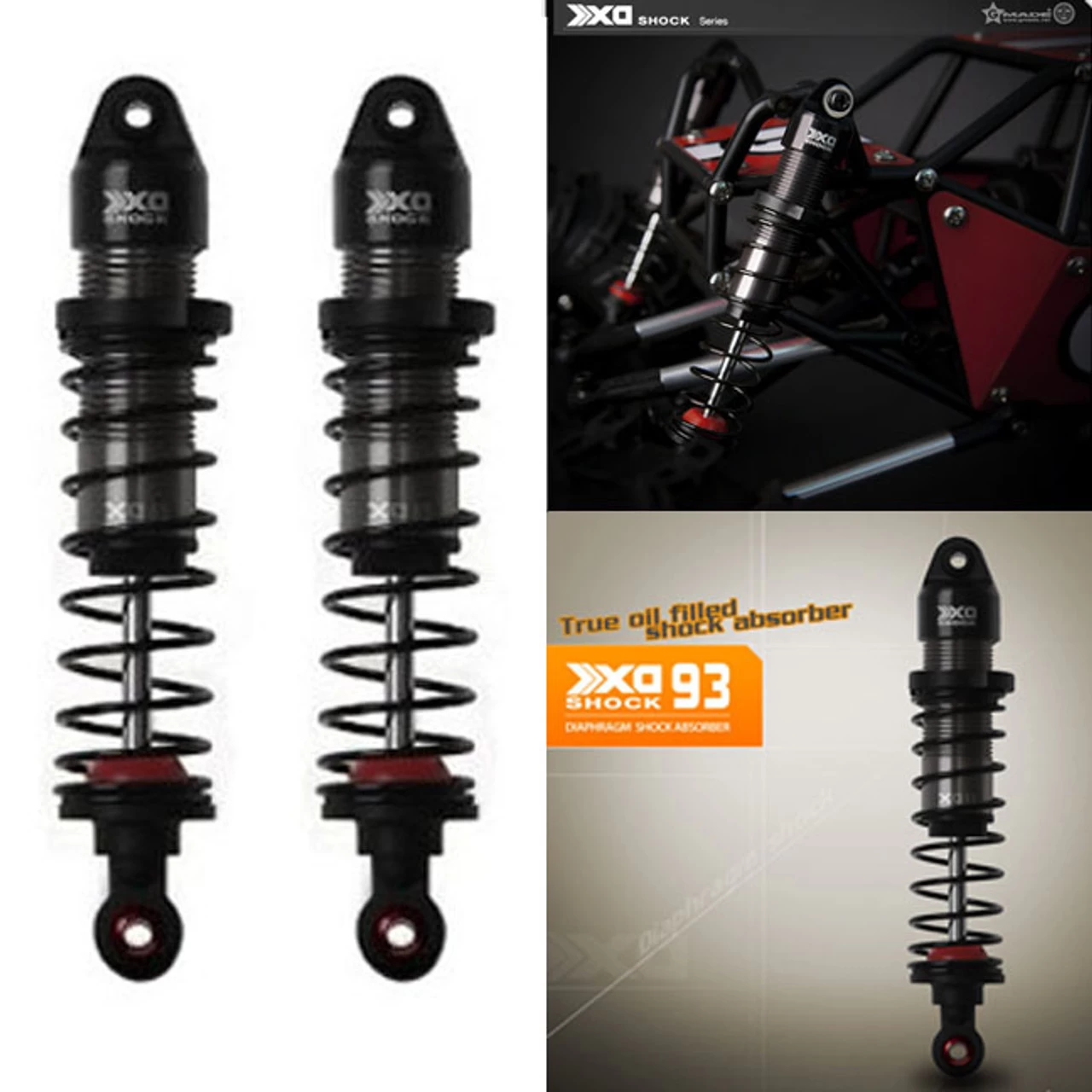

Gmade GM22107 XD Diaphragm Shock 93mm 2pcs 1/10 SC Trucks , Crawlers & Buggys

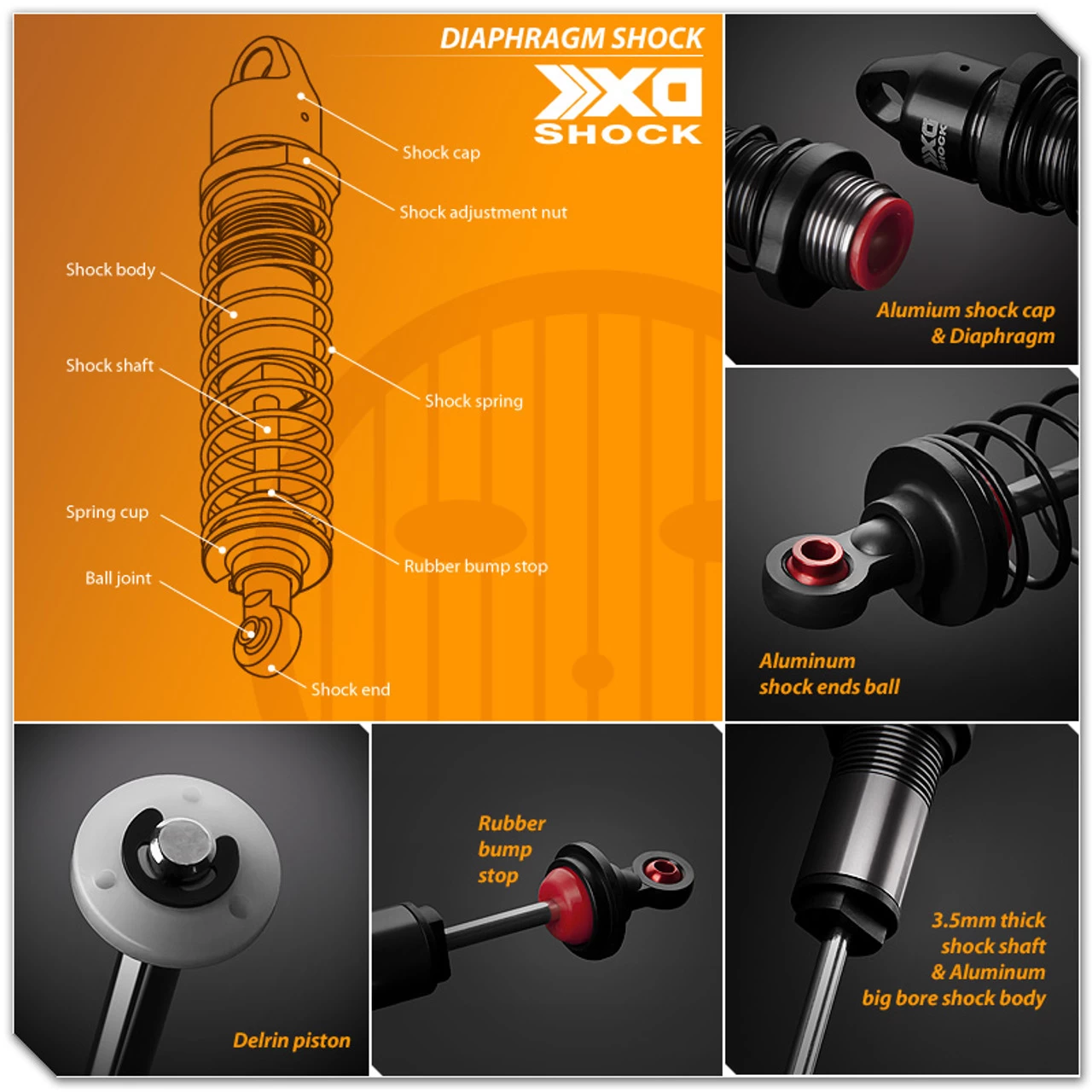

Main features:

    CNC machined Aluminum shock bodies and caps
    Titanium gray anodized shock bodies and caps
    Lower shock ends includes red anodized aluminum balls
    Fully threaded for rapid adjustment
    Delrin pistons
    3.5mm thick shock shafts
    Shaft exits through double O-ring seals
    Easy load shock seal assembly
    Laser engraved for authenticity
    Fits 1/10 scale crawlers & trucks, 1/10 scale EP buggys and Short course trucks (such as Axial SCX10, Associated B44 and SC10 4×4)

What’s included:

    Titanium gray anodized aluminum shock bodies x 2
    Titanium gray anodized aluminum shock caps x 2
    Diaphragms x 2
    Shock springs x 2
    All necessary hardware to finish the shocks
    Assembly instructions
    Bottle of shock oil

Specs:

    Length (Mounting hole to hole): 93mm
    Shock Body Diameter: 14mm
    Spring Diameter: 19mm
    Spring Length: 58mm
    Full Shaft Travel Range: 26mm (without Rubber bump stop)
    Shaft Diameter: 3.5mm
