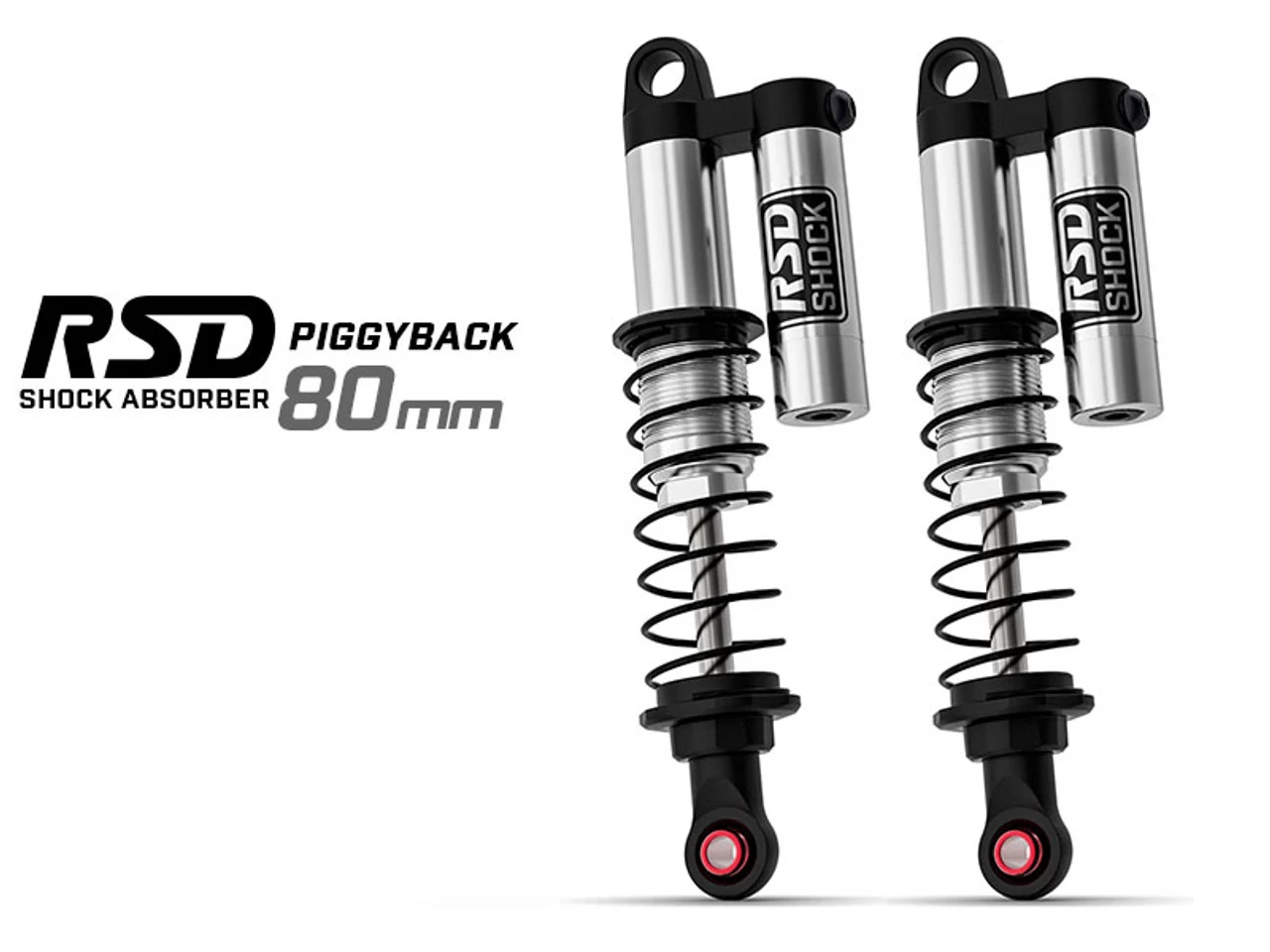

Gmade GM23302 RSD Piggyback Shock 80mm Silver (2) : SCX10 / RC4WD

ASSEMBLY REQUIRED!

Main features:

    Designed for scale and trail trucks
    Real working piggyback operations
    Fast and Easy to change the shock setup without disassembling
    Sophisticated setup by simple use of piggyback adjustable valve
    Anodized aluminum parts
    CNC machined delrin shock spring adjust nut
    CNC machined aluminum parts for the durability
    CNC machined aluminum shock cartridge
    Various hole type delrin shock pistons (2,3,4holes)
    3.5mm thick shock shafts
    Dual O-Ring sealed into the shock cartridge for preventing leak of oil
    Fits Gmade GS01 chassis trucks, 1/10 Scale & Trail trucks (such as Axial SCX10 series, RC4WD scale trucks)

What’s included:

    Silver anodized aluminum shock bodies, piggyback bodies and shock cartridges
    Red anodized aluminum shock end balls x 2
    Delrin shock spring adjust nuts x 2
    3.5mm thick shock shafts x 2
    Shock springs x 2
    Bottle of shock oil x 1
    All necessary hardware to finish the shocks
    Assembly instructions x 1

Specs:

    Length (mounting hole to hole): 80mm
    Shock body diameter: 11mm
    Shock spring diameter: 15mm
    Shock spring length: 38mm
    Full shaft travel range: 21mm
    Shock shaft diameter: 3.5mm
    Shock spring rate: 0.91kg/cm
